Controller Waterproofing — Why “PCB Waterproofing” Matters
In aquarium pumps, wave-making pumps, and other water-based pump devices, the controller is one of the core components — typically responsible for switch control, flow adjustment, feeding function, overload protection, low-water protection, over-voltage / under-voltage protection, jam (stall) protection, etc. Alongside the power supply and the pump itself, the controller forms the “three major core parts” of such equipment.
However, because the working environment is often harsh — high humidity, water splashes, even salt water or salt spray, and sometimes risks like fishes biting through wires — if the controller lacks proper waterproof / moisture-proof / corrosion-proof design, then even a single drop of water or long-term accumulation of moisture can cause fatal damage to the internal chips and circuitry.
Therefore, “PCB waterproofing” — namely protecting the controller’s internal circuit board with waterproof resin — is a critical step to ensure reliable, long-term operation of water pumps and aquatic devices.
Common Waterproofing Methods & Their Limitations
In electronic devices, the common waterproof or moisture-resistant strategies typically include:
- Structural waterproofing / enclosure sealing: using a well-designed waterproof shell, sealing rings, waterproof covers for interfaces to prevent water from entering. Its advantage is ease of maintenance and accessibility of components, but if the sealing is imperfect or interface design is flawed, water ingress remains a risk.
- Conformal coating / surface coating: applying a thin protective film over the PCB (e.g. conformal coating, “three-proof” paint, waterproof varnish). This method is suitable for humid or slightly damp environments, but not for long-term immersion, heavy splashes, salt-water exposure, strong vibration, or salt spray — because the thin coating may eventually degrade, peel off, or be damaged.
- Potting / encapsulation: putting the entire PCB (or key modules) into a shell or mold, then pouring in a waterproof resin that cures to form a solid protective mass — fully encapsulating the electronics. This is generally the strongest method for waterproofing, moisture protection, dust/dirt resistance, shock / vibration resistance, corrosion resistance, and long-term durability.
Given that water pumps and aquarium devices often operate in water-rich, humid, or salt-spray environments — sometimes with splashes, vibration, movement — potting / encapsulation is often the safest and most reliable way to protect the controller.
Why Choose Epoxy Resin Potting for PCB Protection
Using a potting-grade epoxy resin to encapsulate a circuit board has many advantages:
- Waterproof / Moisture / Corrosion Resistance: Once cured, epoxy resin forms a tight, sealed barrier that isolates the PCB from water, humidity, salt spray, and corrosive substances — greatly reducing the risk of short circuits or corrosion.
- Mechanical Strength, Shock & Vibration Resistance: The encapsulated board becomes a solid mass, resilient to shocks, vibrations, and impacts — important for devices subject to movement or transportation.
- Electrical Insulation & Safety: Epoxy potting compounds offer high dielectric strength, ensuring insulation between components and preventing leakage current, short circuits or electrical failures.
- Environmental Durability: Good epoxy potting resins resist moisture, chemicals, temperature variations, salt spray — suitable for aquatic, outdoor or industrial environments.
- Thermal Management (when properly formulated): Some potting compounds include thermally conductive fillers to help dissipate heat generated by components, which is especially important for power or motor-control circuits.
Therefore, if you want your water pump controller — especially its internal PCB — to survive long-term in humid, wet, or salt-containing aquatic environments, epoxy potting is a technically sound, reliable, and proven solution.
Rigid vs. Flexible (Soft) Waterproof Resins — Why We Chose Flexible
When applying waterproof resin for PCBs, there are two broad approaches: using a rigid (hard) resin or a more flexible / modified (soft or flexible) resin / potting compound. Each has its pros and cons:
Rigid (Hard) Resin
- Pros: Excellent sealing, strong mechanical protection, good water / moisture / corrosion resistance, and relatively lower material cost.
- Cons: Poor thermal conductivity and poor adaptability to thermal expansion / contraction. In devices subject to temperature variations (especially frequent heat cycles), the cured rigid resin may develop cracks or gaps — which can undermine waterproofing and allow moisture or water ingress. Moreover, once cured, rigid resin usually makes maintenance or repair very difficult (almost non-reworkable).
Flexible / Modified (Soft-ish) Resin / Potting Compound
- Pros: Better resilience to thermal cycling, thermal expansion / contraction, vibration or mechanical stress; improved tolerance to temperature changes, less prone to brittle cracking. If formula includes thermal-conductive fillers, heat dissipation can also be acceptable. For brands / manufacturers, such flexible potting resin can allow easier disassembly or repair compared to hard, fully rigid encapsulation — improving maintenance / after-sale service capability.
- Cons: Compared to rigid resin, the protective shell may be less mechanically “rock-solid,” depending on formulation; and achieving both flexibility + sufficient waterproofing + thermal conductivity + durability often requires careful selection / formulation of resin. Also, resin-filled potting still adds weight and bulk, which may increase shipping / manufacturing cost.

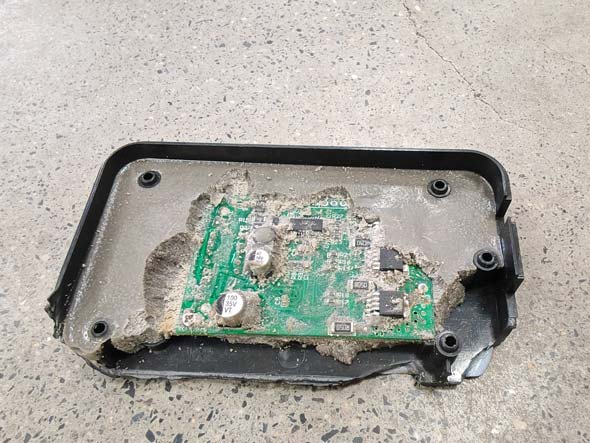

Based on these trade-offs, we (at CONQUERALL) ultimately adopted a flexible + thermally enhanced + repair-friendly potting resin for our water-pump controllers. This way, the controller is well-protected against water, humidity, salt, vibration — yet remains more tolerant of temperature cycles and easier to open for troubleshooting or repair if needed.
Why We Made This Trade-off — Our Engineering & Service Philosophy
For CONQUERALL:
- Although rigid potting resin offers strong sealing and protection, its poor thermal performance and rigid nature may lead to cracking over time due to temperature changes (especially in water pumps working in water of varying temperature), compromising waterproofing.
- Rigid encapsulation also makes repair / inspection / maintenance nearly impossible — a disadvantage for after-sales service, quality control, and customer satisfaction.
- As a manufacturer and brand, we feel a responsibility to every customer: to ensure long-term reliability, safety, and durability; but also to provide maintainability / service support in case of faults. Therefore, we chose the more balanced approach: flexible, thermally enhanced potting resin that balances waterproof protection, thermal stress resilience, and maintainability.
Yes — this choice results in a slightly heavier controller and modestly higher shipping/production cost. But for us, it is a necessary trade-off to uphold quality, reliability and customer trust.
To Customers / End-Users / Potential Buyers — What You Should Know
– If you use a water pump whose controller is properly potted / encapsulated, even under long-term exposure to water, humidity, salt spray, splashes, or aquarium conditions — the controller’s internal electronics are much less likely to get damaged.
– On the other hand, if a pump’s controller only uses enclosure sealing + simple surface coating (conformal coating / varnish), but without full potting / encapsulation, then even a tiny water drop, splash, or moisture accumulation can be a hidden danger — potentially causing future failure.
– If you attempt DIY maintenance or modification: be aware that resin potting may complicate maintenance, or affect heat dissipation; unless you are experienced, DIY potting / de-potting is not recommended.
– As a manufacturer, we recommend that critical components (especially control boards) in aquatic devices should use a properly formulated, flexible / thermally enhanced potting resin — to maximize waterproof reliability while preserving serviceability.
Conclusion
For water pumps and aquarium devices — which often operate under water-rich, humid, salt-containing, or vibration / splash / impact conditions — “PCB waterproofing” is not just an extra feature, but a critical factor determining device lifespan, reliability, safety and user satisfaction.
By adopting a flexible, thermally enhanced, repair-friendly potting resin, we aim to deliver the most reliable, durable, and safe waterproof protection for every product — because we are committed to being responsible for every user, and for the aquatic life that brings joy and happiness.
If you are using or considering purchasing a water pump or aquarium device, please pay attention to whether the controller uses professional waterproof potting / encapsulation — this is often the key to long-term stable operation.
